Ray mappings and the weighted least action principle


Two basic problems in optics are presented. The solutions to both problems are formulated in terms of the associated ray mappings. An alternative formulation based on a weighted sum of the actions along the rays is derived. Existence of solutions is established via the Weighted Least Action Principle. Numerical methods for computing the ray mappings are discussed. Finally, we demonstrate the theoretical considerations by presenting complete solutions to a phase retrieval problem and to a specific beam shaping lens design.


Ray mappings are fundamental objects in geometrical optics. Given an optical element, its Hamilton’s point eikonal function includes the information on all possible ray mappings induced by it. However, in many applications one looks for specific ray mappings that satisfy certain constraints. In this paper we shall consider two such cases. In the first case we search for all ray mappings associated with a single monochromatic beam whose intensity is known at two planes. This question, known as the phase from intensity problem, arises in many applications ranging from astronomy [18, 24] to ophthalmology [12]. The second case concerns the shaping of a collimated beam with arbitrary incident and refracted intensity distributions. Beam shaping has many applications ranging from solar energy to chip manufacturing and medical instruments [6].

While these two cases involve two completely different problems in optics, we shall show that their mathematical formulation is essentially identical. We shall then introduce two characterizations of these problems, provide practical methods to compute the ray mappings, and from the mappings obtain the unknown phase in case one, and the beam shaping lens in case two.


In the next section we formulate the wave propagation problem via the Rayleigh-Sommerfeld diffraction integral. This formulation is natural for problems where the wave might pass through a caustic. The large wave number expansion of the diffraction integral is used to derive the ray mapping equations for the phase retrieval problem. The ray mapping condition for the beam shaping lens, that was derived in an earlier work by us, is presented in Sect. 4. In Sect. 5 we show that both ray mapping problems can be solved by the Weighted Least Action Principle (WLAP). This variational method, which is a natural extension of the Fermat principle of least time [19, 20], was extensively studied in recent years both theoretically [25] and in a number of applications. In particular we characterize important properties of the critical points of the weighted least action functional, and associate them with the phase retrieval and beam shaping problems. Numerical methods for computing the ray mappings, or equivalently for finding the critical points of the Weighted Least Action functional, along with one example of phase retrieval and one example of lens design are provided in Sect. 6.

Phase from intensity

We denote \(u(x,y,z)\) a monochromatic wave propagating in the positive z direction. We express u in the form

$$ u(x,y,z) = A(x,y,z) e^{ik \phi (x,y,z)}. $$

The goal is to find the phase (or eikonal) ϕ from measurements of its intensities \(I=A^{2}\) at two planes, say \(z=0\) and \(z=h\):

$$ I(x,y):= I(x,y,0),\qquad I_{p}(x,y):= I(x,y,h). $$

The wave u is assumed to obey the Helmholtz equation \(\Delta u + k ^{2} u=0\), where k is the wave number, and we assume that the refraction index is \(n=1\).

In the geometrical optics limit the phase is equivalent to the rays, which are the normals to the wavefronts. A point \((x,y)\) at the aperture Σ on the plane \(z=0\) is mapped into a point \(T(x,y) = (x_{p},y _{p})\) at the imaged aperture \(\Sigma_{p}\) on the second plane \(z=h\). To find the relation between the ray mapping and the phase \(\phi (x,y,0)\) we use the Rayleigh-Sommerfeld diffraction integral [3], [23]:

$$ u(x_{p},y_{p},h) = \frac{-ik}{2\pi } \int_{\Sigma } A(x,y,0)\frac{ \exp (ik(\phi (x,y,0)+d(x_{p},y_{p},x,y)))}{d(x_{p},y_{p},x,y)} \cos \theta \,dx \,dy. $$

Here \(d = ( (x_{p}-x)^{2}+(y_{p}-y)^{2}+h^{2} ) ^{1/2}\), and θ is the angle made by the line connecting \((x,y)\) and \((x_{p},y_{p})\) with the plane \(z=0\). The integral is approximated in the large k limit by the stationary phase method [10], [22]. The stationarity condition is \(\nabla_{x}(\phi (x,y,0) + d(x_{p},y_{p},x,y))=0\), or equivalently:

$$ \nabla \phi = -\nabla_{x} d = \frac{(x_{p}-x,y_{p}-y)}{ ( (x_{p}-x)^{2} + (y_{p}-y)^{2} + h^{2} ) ^{1/2}}, $$

where the notation \(\nabla_{x} s(x_{p},y_{p},x,y)\) denotes the gradient of a function s with respect to the \((x,y)\) variables. We assume that equation (4) implies a one to one correspondence between Σ and \(\Sigma_{p}\), which is equivalent to assuming that no caustic surface intersects either planes \(z=0,h\).

Using equation (4), we can write down the classical stationary phase approximation of \(u(x_{p},y_{p})\) and then use it to obtain the following relation between the intensities at the two planes:

$$ I_{p}\bigl(T(x,y)\bigr) \bigl\vert J\bigl(T(x,y)\bigr) \bigr\vert = I(x,y). $$

Here J is the Jacobian of the ray mapping \((x_{p},y_{p})=T(x,y)\), and \(|J|\) denotes the absolute value of the determinant of J. We denote the set of mappings T satisfying condition (5) as \({\mathcal {T}}\). Therefore, the phase retrieval problem is equivalent to finding a ray mapping \(T:(x,y) \rightarrow (x_{p},y_{p})\) that satisfies both equations (4) and (5).

Beam shaping

Consider an incident collimated beam, propagating in the z direction, whose cross sectional intensity is \(I(x,y)\). The goal is to design a lens with two freeform surfaces, denoted f and g, that converts it into a new collimated beam with cross sectional intensity \(I_{p}(x,y)\). Such problems are of great importance in the laser industry [6]. The case where I and \(I_{p}\) are both radially symmetric is well-known [15], and can be reduced to simple ODEs. However, we consider the most general case of arbitrary distributions I and \(I_{p}\). In this case beam shaping can only be achieved by freeform surfaces [7], [21], [13], [14], [16], [4].

The schematic beams and optical element are depicted in Fig. 1. In Fig. 2 we present an example, where the target is to design a lens that converts an incoming collimated beam with six spots (for instance a beam created by a LED-based device) into a homogeneous collimated beam. Later, in Sect. 6, we shall compute the surfaces f and g for this example. A striking fact, proved in Sect. 5, is that both these surfaces are convex.

Figure 1

Shaping arbitrary collimated beams

Figure 2

An incoming beam consisting of six spots arranged over a circle

Let \(f(x,y)\) and \(g(x,y)\) be the front and back surfaces of the lens, respectively. The refraction index of air is 1, and we denote the lens refraction index n. Consider a ray that starts from a point \((x,y)\) on a surface \(z=0\) on the left side of the lens. After two refractions, the ray is mapped into a point \((x_{p},y_{p})=T(x,y)\) on a plane \(z=h\) on the right side of the lens. The ray mapping T is constrained by the energy conservation equation (5). In addition, the mapping T and the lens surfaces f and g are related by Snell’s law of refraction and by the fact that both planes \(z=0\), h are wavefronts, since the incident and refracted beams are collimated. This implies that the optical path length between all points \((x,y)\) and their images \(T(x,y)\) is constant. Combining these facts, and after some algebra, the following equation is obtained [21] that relates f and T.

$$ \nabla f = \frac{-n((x_{p},y_{p})-(x,y))}{\sqrt{\chi -bn \vert (x_{p},y _{p})-(x,y) \vert ^{2}}}, $$

where χ and b are two constants that depend upon n, the distance h between the planes, and an integration factor [21]. A similar equation holds for the second surface g.

The weighted least action principle

We presented in Sects. 3 and 4 two different optical problems that are fully determined by specific ray mappings. Surprisingly, both problems lead to a similar mathematical formulation. Both ray mappings are required to satisfy the energy conservation condition (5). In addition, in both cases the ray mapping T must satisfy a ‘symmetry’ condition such as (4) or (6). Three questions arise. The first is whether such ray mappings T exist at all. If the answer to this question is positive, the second question is how many solutions exist, and what are their properties. The third question is how to compute the ray mappings.

It is very hard to answer these questions directly from equations (4)–(5). Together they constitute a very complicated PDE of the notorious Monge–Ampere type [17]. Instead, we shall answer all three questions using an equivalent formulation of the problem. For this purpose, we associate each ray connecting \((x,y)\) and \((x_{p},y_{p})=T(x,y)\) with an action \(C(T,(x,y))\), and then define the weighted total action to be

$$ M(T) = \int_{\Sigma } C\bigl(T,(x,y)\bigr) I(x,y)\,dx\,dy, $$

where Σ denotes the wave’s aperture, or the beam’s cross sectional domain. The weighted action M is restricted to the set \({\mathcal {T}}(I,I_{p})\) of mappings that satisfy condition (5). The functional \(M(T)\) was introduced (for the special case \(C(x_{p},y_{p},x,y) = |(x_{p},y_{p})-(x,y)|\) by Monge. It has been extensively studied in recent years both theoretically and in the context of several applications [25]. In the optical set up, the special case \(C(x_{p},y_{p},x,y) = |(x_{p},y_{p})-(x,y)|^{2}\), naturally denoted the \(L_{2}\) Monge problem, is related to paraxial wave propagation [22], and to the Schrödinger equation [20]. For the applications in the present paper we consider cost functions C of the form

$$ C(x_{p},y_{p},x,y) = C\bigl((x_{p},y_{p})-(x,y) \bigr), $$

with \(C(z)\) being a smooth convex function.

The stationary points of \(M(T)\) are characterized by the following condition:

Theorem 1

Assume I, \(I_{p}\) are positive continuous functions, and the domains Σ, \(\Sigma_{p}\) are compact. A ray mapping \((x_{p},y_{p})=\bar{T}(x,y)\) is a critical point of M in the class \({\mathcal {T}}(I,I_{p})\) if and only if T satisfies the following relation

$$ \nabla_{x} C(x_{p},y_{p},x,y) = \nabla \zeta (x,y), $$

for some ‘potential’ function \(\zeta (x,y)\).

The stationarity condition (9) can be proved (e.g. [22]) by computing the first variation of M under the constraint (5). The next question is how many solutions exist.

Theorem 2

Under the assumptions of Theorem 1 there exist a minimizer and a maximizer for the functional \(M(T)\).

The existence of a minimizer of M, was proved by Brenier [5]; see also [25]. The existence of a maximizer follows from the fact that the conditions on I, \(I_{p}\) and Σ, \(\Sigma_{p}\) imply weak star compactness for the optimization problem; see [26]. Furthermore, we conjecture that there always exist also critical points that are neither minimizers nor maximizers.

As will be shown later, it is important to characterize in some detail the stationary solutions. In the \(L_{2}\) Monge problem, it can be shown that both the minimizer and the maximizer are gradients of some function ψ, where ψ is convex for the minimizer, and concave for the maximizer. For a more general convex cost function C, we now prove:

Theorem 3

Assume I and \(I_{p}\) are positive continuous functions, the two domains Σ, \(\Sigma_{p}\) are bounded, and \(C(z)\) is a smooth convex function. Let \(\zeta (x)\) be the potential in equation (9) associated with the maximizer of M. Then the maximizer \((x_{p},y_{p})=\bar{T}(x,y)\) of the functional M is of the form

$$ \bar{T}(x,y) = (x,y) - \nabla C^{*}\bigl(\nabla \zeta (x,y)\bigr), $$


$$ C^{*}(p_{1},p_{2}) = \max_{x,y} (p_{1},p_{2})\cdot (x,y) - C(x,y), $$

and ζ is a convex function.


Define the class \({\mathcal {A}}\) to be:

$$ {\mathcal {A}} = \alpha (x,y), \beta (x_{p},y_{p});\qquad \alpha (x,y) + \beta (x_{p},y_{p}) \geq C\bigl((x_{p},y_{p})-(x,y) \bigr). $$

We also introduce the class of joint intensity functions Π, such that the marginal intensities of any function \(\pi \in \Pi \) are I and \(I_{p}\) respectively, i.e.

$$ \int \pi (x,y,x_{p},y_{p})\,dx\,dy = I_{p}(x_{p},y_{p}), \qquad \int \pi (x,y,x_{p},y_{p})\,dx_{p} \,dy_{p} = I(x,y). $$

Clearly, for every \(\pi \in \Pi \)

$$\begin{aligned}& \int \bigl( \alpha (x,y) + \beta (x_{p},y_{p}) \bigr) \pi \,dx\,dy\,dx_{p}\,dy _{p} \\& \quad = \int \alpha (x,y) I(x,y)\,dx\,dy + \int \beta (x_{p},y_{p})I_{p}(x_{p},y _{p})\,dx_{p}\,dy_{p} \\& \quad \geq \int C\bigl((x_{p},y_{p})-(x,y)\bigr) \pi \,dx\,dy \,dx_{p}\,dy_{p}. \end{aligned}$$

Since the inequality in equation (14) holds for all π and all α, β we can apply a min-max argument and conclude

$$\begin{aligned}& \inf_{\alpha ,\beta \in {\mathcal {A}} } \int \alpha (x,y) I \,dx\,dy + \int \beta (x _{p},y_{p})I_{p} \,dx_{p}\,dy_{p} \\& \quad \geq \sup_{\pi \in \Pi } \int C\bigl((x_{p},y_{p})-(x,y)\bigr) \pi \,dx\,dy \,dx _{p}\,dy_{p}. \end{aligned}$$

In particular, for the special set of π of the form \(\pi = I(x,y) \delta ((x_{p},y_{p}) - T(x,y))\), where \(T(x,y)\) is a mapping in \({\mathcal {T}}\), we have

$$\begin{aligned}& \inf_{\alpha ,\beta \in {\mathcal {A}}} \int \alpha (x,y) I \,dx \,dy + \int \beta (x _{p},y_{p})I_{p} \,dx_{p}\,dy_{p} \\& \quad \geq \sup_{T\in {\mathcal {T}}} \int C\bigl(T(x,y) -(x,y)\bigr) I(x,y)\,dx\,dy. \end{aligned}$$

Recalling the potential function \(\zeta (x,y)\) we define

$$ \eta (x_{p},y_{p}) = \max_{x,y} C \bigl((x_{p},y_{p})-(x,y)\bigr) - \zeta (x,y). $$

Moreover, solving the optimization problem in equation (17) provides a ray mapping

$$ (x_{p},y_{p}) = \bar{T}(x,y) = (x,y)-\nabla_{x} C^{*}(\nabla_{x} \zeta). $$

Similarly, ζ can be expressed in terms of η:

$$ \zeta (x,y) = \sup_{x_{p},y_{p}} C\bigl((x_{p},y_{p})-(x,y) \bigr) - \eta (x_{p},y _{p}). $$

We now select \(\bar{\pi } = I(x,y) \delta ((x_{p},y_{p}) - \bar{T}(x,y))\) and \(\alpha (x,y) = \zeta (x,y)\), \(\beta (x_{p},y_{p}) = \eta (x_{p},y_{p})\). Using the definition of ζ, η and we can calculate the integrals in the inequality (15), and obtain that for this choice of \((\bar{T}, \alpha , \beta )\) both sides equal \(M(\bar{T})\). Therefore is the mapping that maximizes \(M(T)\) in the class \({\mathcal {T}}\). Finally, since \(\zeta (x,y)\) is obtained by maximizing a convex function C, it must be convex, which completes the proof. □

It is now possible to identify both equations (4) and (6) to be of the form of equation (9). Therefore the phase from intensity problem can be solved by associating the unknown phase \(\phi (x,y,0)\) with the critical points of M for the choice \(C_{1}(x_{p},y_{p},x,y) = d(x_{p},y_{p},x,y)\). Similarly the beam shaping lens can be solved by identifying the front lens surface f with the critical points of M for the choice \(C_{2}(x_{p},y_{p},x,y) = -\sqrt{\chi -bn|(x_{p},y_{p})-(x,y)|^{2}}\). It remains to consider the computation of the critical points.

We point out that in general the selection of the appropriate cost function C follows from the nature of the wave equation, or more precisely from its Hamiltonian nature. A number of canonical wave equations, their Hamiltonian, and the associated C can be found for instance in [20].


The problem of computing minimizers of M received quite a bit of attention. For example we refer to [1, 2, 8] where PDE-based approach is suggested. An alternative combinatorial approach is to sample the two intensities I, \(I_{p}\) faithfully by two sets of points \((x^{j},y^{j})\) for I and \((x_{p}^{j},y_{p}^{j})\) for \(I_{p}\), where \(j=1,2,\ldots, N\). The problem of minimizing M is the same as computing the permutation π that minimizes

$$ \sum_{j=1}^{N} C\bigl(x_{p}^{\pi (j)},y_{p}^{\pi (j)}; x^{j},y^{j}\bigr). $$

The same method can be used to find the maximizer of \(M(T)\). While searching over all permutations has of course huge complexity, much more efficient algorithms, such as the “Hungarian algorithm” [9] were proposed with complexity of \(O(N^{3})\). An even more effective multiscale algorithm was proposed recently by Merigot [11], although it is limited to quadratic cost functions. We recently developed a very fast \(O(N \log N)\) multiscale algorithm that works for all convex C, at the price of some moderate assumptions on the potential function ζ. However, in the simulations in the present paper we use the Hungarian algorithm.

We proceed to present a few examples. We first demonstrate the WLAP as a method to retrieve an arbitrary phase. We select the initial aperture to be the unit disc, and the initial phase is \(\phi (x,y) = 0.1(\frac{x ^{2}}{2} + y^{2} + 3 x^{4} + y^{3})\) to mimic defocus, coma and spherical aberrations. We assumed uniform intensity on the first screen, and computed the exact intensity at the second screen. The sampling of both intensities (200 sampling points) are depicted in Figs. 3(a) and 3(b), respectively.

Figure 3

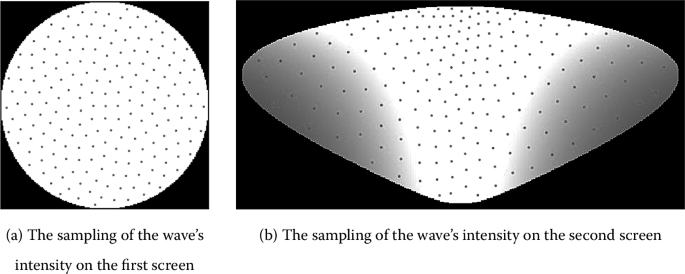

The sampling of the wave’s intensity

The ray mapping was computed by minimizing the Monge functional \(C_{1}\) defined in Sect. 5. The calculated ray mapping, and the exact ray mapping are depicted in Figs. 4 and 5, respectively.

Figure 4

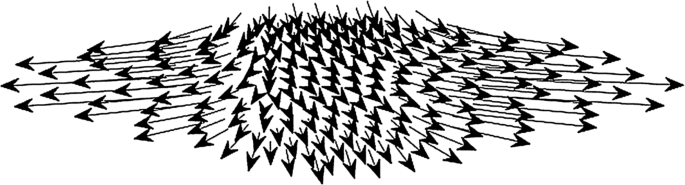

The theoretical ray mapping

Figure 5

The ray mapping obtained by minimizing the Monge functional

The expected convergence rate of the algorithm can be bounded by the size of an average ‘cell’. In the case of a unit disc aperture, the bound is thus \(\sqrt{\pi /N}\) where N is the number of sampling point. In practice the convergence is better, as can seen in Table 1.

Table 1 Convergence of the ray mapping algorithm

In the second example we consider the beam shaping problem of Sect. 4. The intensities were sampled with 400 points (right drawing of Fig. 6. In this case we computed the maximizer of M, for the cost function \(C_{2}\) defined in Sect. 5, since this solution guarantees that both surfaces f and g are convex, which is a very important consideration in the lens manufacturing. The ray mapping is depicted in the left drawing of Fig. 6. Finally, we depict the lens surfaces in Fig. 7.

Figure 6

A discrete sampling of the intensity of the incoming beam (right) and the ray mapping (left)

Figure 7

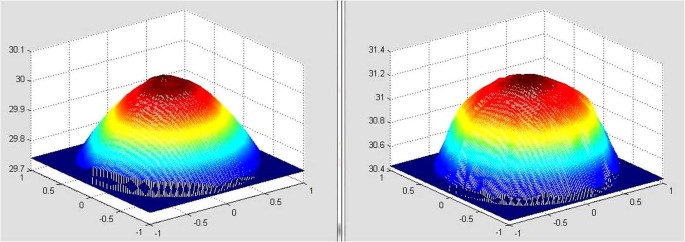

The surfaces (f on the left and g on the right) of the beam shaping lens

Indeed, as proved in Theorem 3 in Sect. 5, both surfaces are convex, in contrast to the highly nonconvex intensity distribution of the incident beam.
